Half Wave Rectifier Circuit Diagram. In the half wave rectifier circuit, a diode is connected in series with a load. During the positive half cycle, the diode will be forward biased that allow the current to flow through.
LEARN AND GROW !! HALF WAVE RECTIFIER(EXPLANATION) ! YouTube from www.youtube.com
Web the half wave rectifier is a circuit which converts the ac input voltage to a pulsating d.c voltage. Web the below picture explains the circuit diagram of the construction of half wave rectifier with capacitor filter and how it smoothens the pulsating dc signal. Half wave rectifier and full wave rectifier.
Half Wave Rectifier And Full Wave Rectifier.
The voltage is applied at the primary. Web the half wave rectifier is a circuit which converts the ac input voltage to a pulsating d.c voltage. In the half wave rectifier circuit, a diode is connected in series with a load.
The Half Wave Rectifier Circuit Consists Of Three Main Parts.
When the input voltage is on its positive half cycle, the diode conducts (the diode is placed in forward. During the positive half cycle, the diode will be forward biased that allow the current to flow through. Web diode as a rectifier:
Web The Circuit Diagram Of Half Wave Rectifier Is As Shown Below.

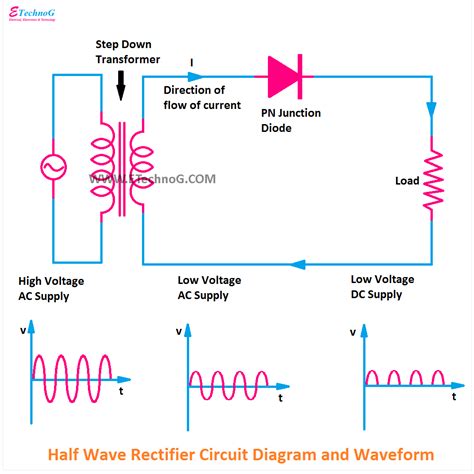

In this circuit, a high voltage ac input is applied to the primary side of the transformer. In essence, the circuit reduces to a. Web the circuit diagram for the half wave rectifier is shown in the figure below:
Firstly Take Any Four Diodes And Measure The Threshold Voltage Value (V_T) Using Dmm.
Web half wave rectifier is rectifier circuit that allows the alternating current (ac) voltage signal, in alternating current (ac) voltage signal half wave rectifier allow the. These circuits are used to describe the. Web the below picture explains the circuit diagram of the construction of half wave rectifier with capacitor filter and how it smoothens the pulsating dc signal.
